之前使用matlab模拟本征值的链接如下：

现在使用bout3中的slepc求解器尝试对这一问题重复操作：

   int rhs(BoutReal t) {
     mesh->communicate(u, v);

     // First-order system:
     // du/dt = v
     ddt(u) = v;

     // dv/dt = -[M]^{-1}[K]u
     // Euler-Bernoulli beam equation: EI * d⁴u/dx⁴ + ρA * d²u/dt² = 0
     // So dv/dt = -(EI/ρA) * d⁴u/dx⁴

     // Compute fourth derivative using D2DX2 twice
     // First apply d²u/dx²
     Field3D d2u = D2DX2(u);
     d2u.applyBoundary("neumann");  // Apply boundary conditions for stability
     mesh->communicate(d2u);

     // Then apply d²/dx² again to get d⁴u/dx⁴
     Field3D d4u = D2DX2(d2u);
     d4u.applyBoundary("neumann");
     mesh->communicate(d4u);

     // dv/dt = -(EI/ρA) * d⁴u/dx⁴
     BoutReal coeff = -(E * I) / (rho * A);
     ddt(v) = coeff * d4u;

     // Apply boundary conditions to ddt(v) to avoid non-finite values at boundaries
     ddt(v).applyBoundary("dirichlet");

     return 0;
   }

输入模块BOUT.inp中与solver相关的内容如下：

[solver]
type = "slepc"

neig = 64

mpd = 128

useInitial=true
maxit=10000
tol=1.0e-4

userWhich = false
targRe=0.0
targIm=0.0

selfSolve = false
timestep = 0.01

# Matrix output options for debugging
outputMatrix = true
matrixOutputRows = 20
matrixOutputFile = true

# Eigenvector output options

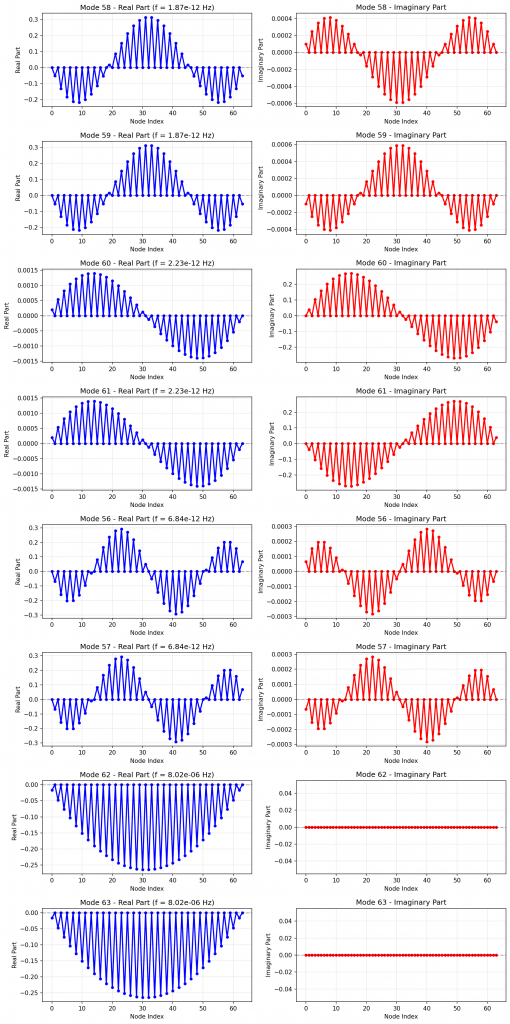

outputEigenvectors = true
numEigenvectorsOutput = 8

与之前文章不同的是，这次两边的边界条件都是neumann，从而导致两边固定，第一个本征值应该为0。运行结果如下：

  Eigenvector 57 saved to data/eigenvector_57.txt
        58      -1.17483e-11+5.29770e+02i       (529.77)        -5.29770e+02-1.17483e-11i       (529.77)
        Option :datadir = data
  Eigenvector 58 saved to data/eigenvector_58.txt
        59      -1.17483e-11-5.29770e+02i       (529.77)         5.29770e+02-1.17483e-11i       (529.77)
        Option :datadir = data
  Eigenvector 59 saved to data/eigenvector_59.txt
        60      -1.40204e-11+1.93112e+02i       (193.112)       -1.93112e+02-1.40204e-11i       (193.112)
        Option :datadir = data
  Eigenvector 60 saved to data/eigenvector_60.txt
        61      -1.40204e-11-1.93112e+02i       (193.112)        1.93112e+02-1.40204e-11i       (193.112)
        Option :datadir = data
  Eigenvector 61 saved to data/eigenvector_61.txt
        62       5.04113e-05+0.00000e+00i       (5.04113e-05)    0.00000e+00+5.04113e-05i       (5.04113e-05)
        Option :datadir = data
  Eigenvector 62 saved to data/eigenvector_62.txt
        63      -5.04113e-05+0.00000e+00i       (5.04113e-05)    0.00000e+00-5.04113e-05i       (5.04113e-05)
        Option :datadir = data
  Eigenvector 63 saved to data/eigenvector_63.txt

可以看到第一个本征值为0，第二个本征值为193，第三个本征值为529，与之前文章中的30，191，534，基本吻合。
